Detailed View

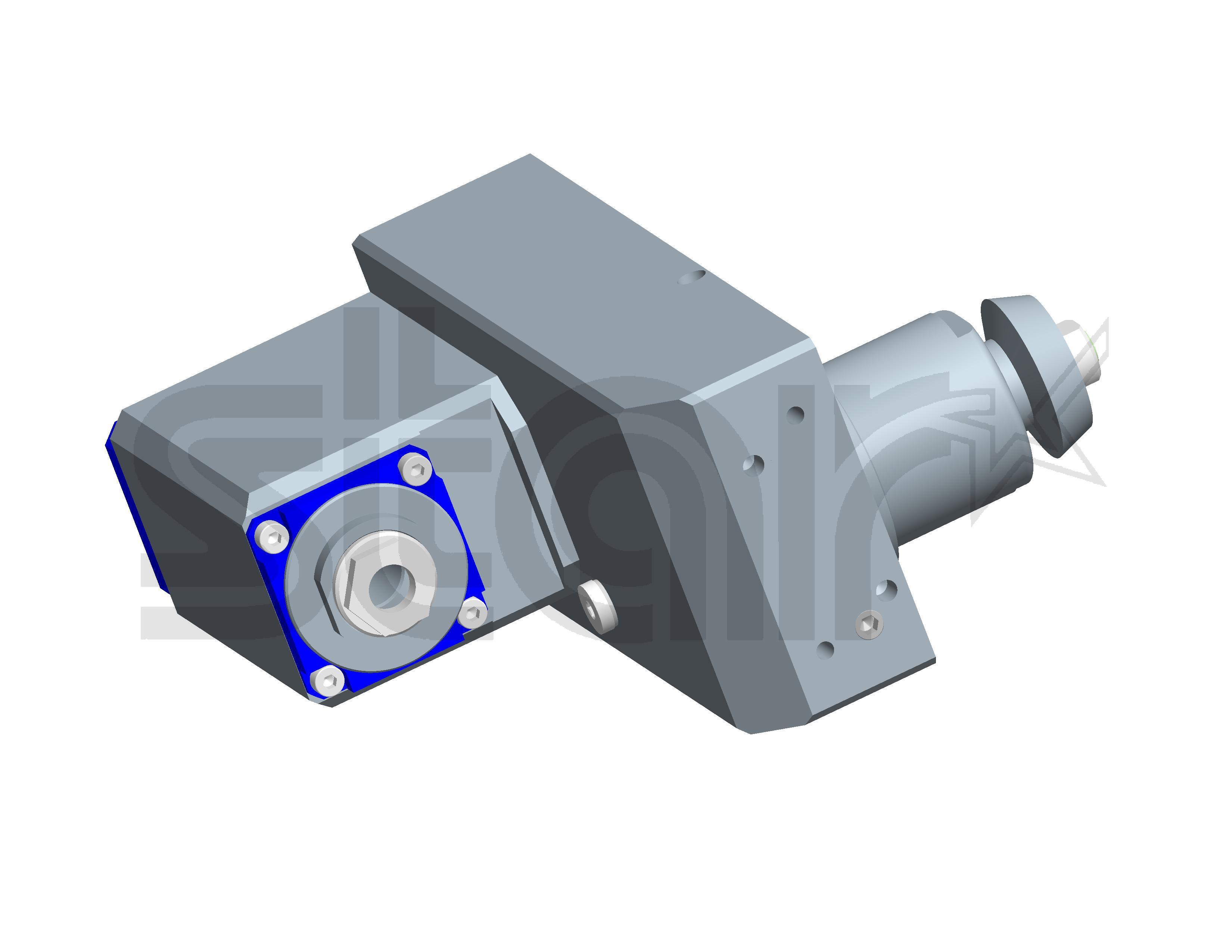

Front drilling unit ER16 for deep drilling for backworking; 18000 1/min; with coolant supply (internal)
| Part Number | 7.075.535 |
| for | 2 Machines |
| Ratio | 1:3.06 |
| rpm at Input | max. 5750 rpm |
| rpm at Output | max. 17601 rpm |
| Torque at Output | max. 13 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench, excluding collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Coolant tubes 0.000.377 |
Additional CAD Files:

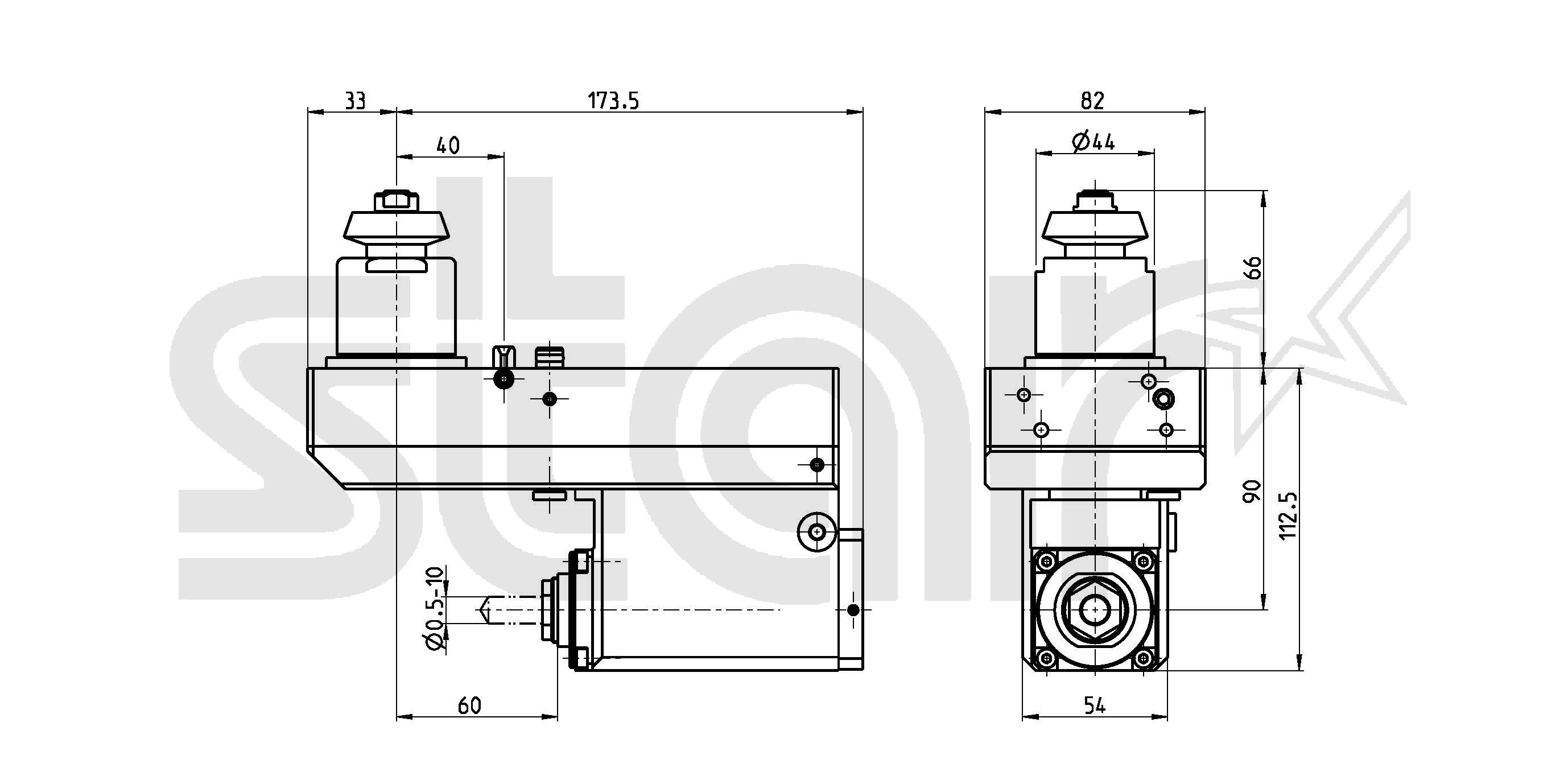

2D-View
3D-View
2D-View
3D-View / QR-Code
Upload to Smart Phone
