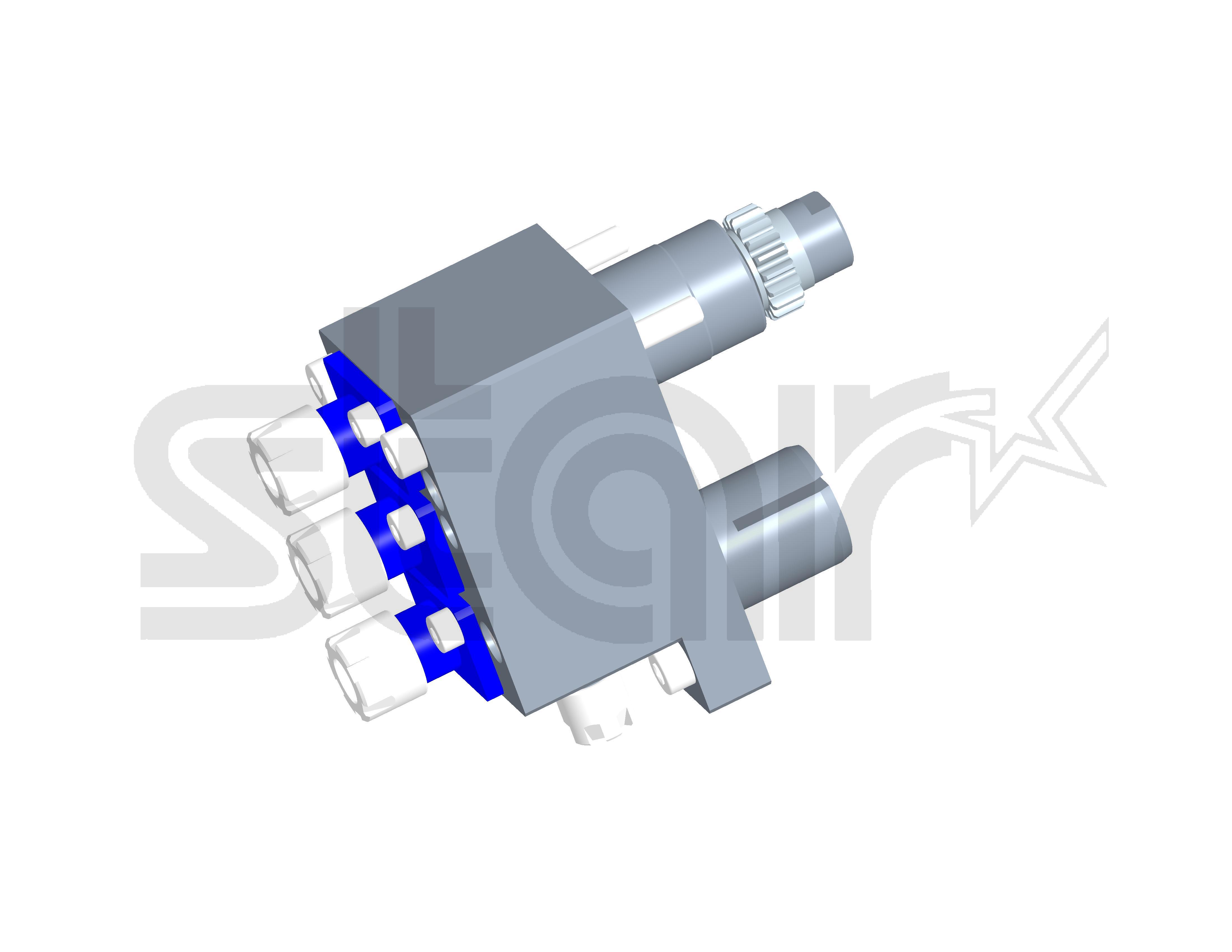

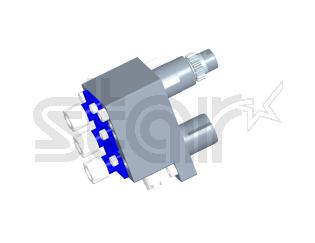

3-Spindle front drilling-/milling unit ER11 and cross drilling-/milling unit ER8 for backworking

Part Number 7.072.831
for Star SR-10J
Ratio1:1
rpm at Inputmax. 10000 rpm
rpm at Outputmax. 10000 rpm
Torque at Outputmax. 6 Nm
Direction of Rotation
Scope of Deliverysupplied with wrench, excluding collets * Actual size inscribed on the tool
AccessoriesCollets see Equipment for Toolholders Z2.1
Cover for internal coolant 1088334
Additional CAD Files:

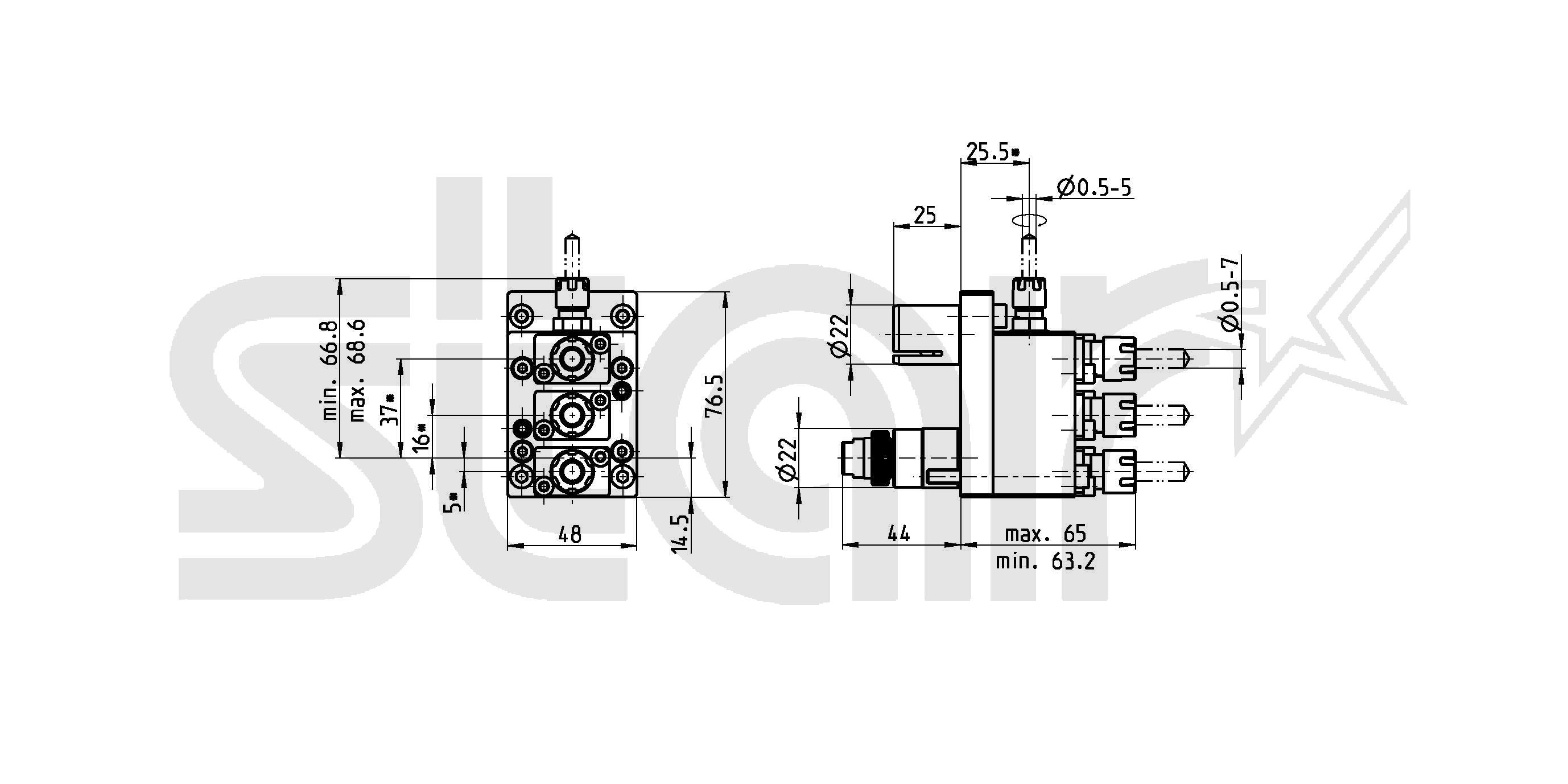

2D-View
3D-View
2D-View
3D-View / QR-Code

Upload to Smart Phone
