Detailed View
2-spindle front drilling-/milling unit DECOFLEX®15
| Part Number | 7.074.710 |
| for | 8 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 8000 rpm |
| rpm at Output | max. 8000 rpm |
| Torque at Output | max. 13 Nm |
| Direction of Rotation |  |
| Scope of Delivery | * Actual size inscribed on the tool |
| Accessories | DECOFLEX® Adapter 15 |
Additional CAD Files:

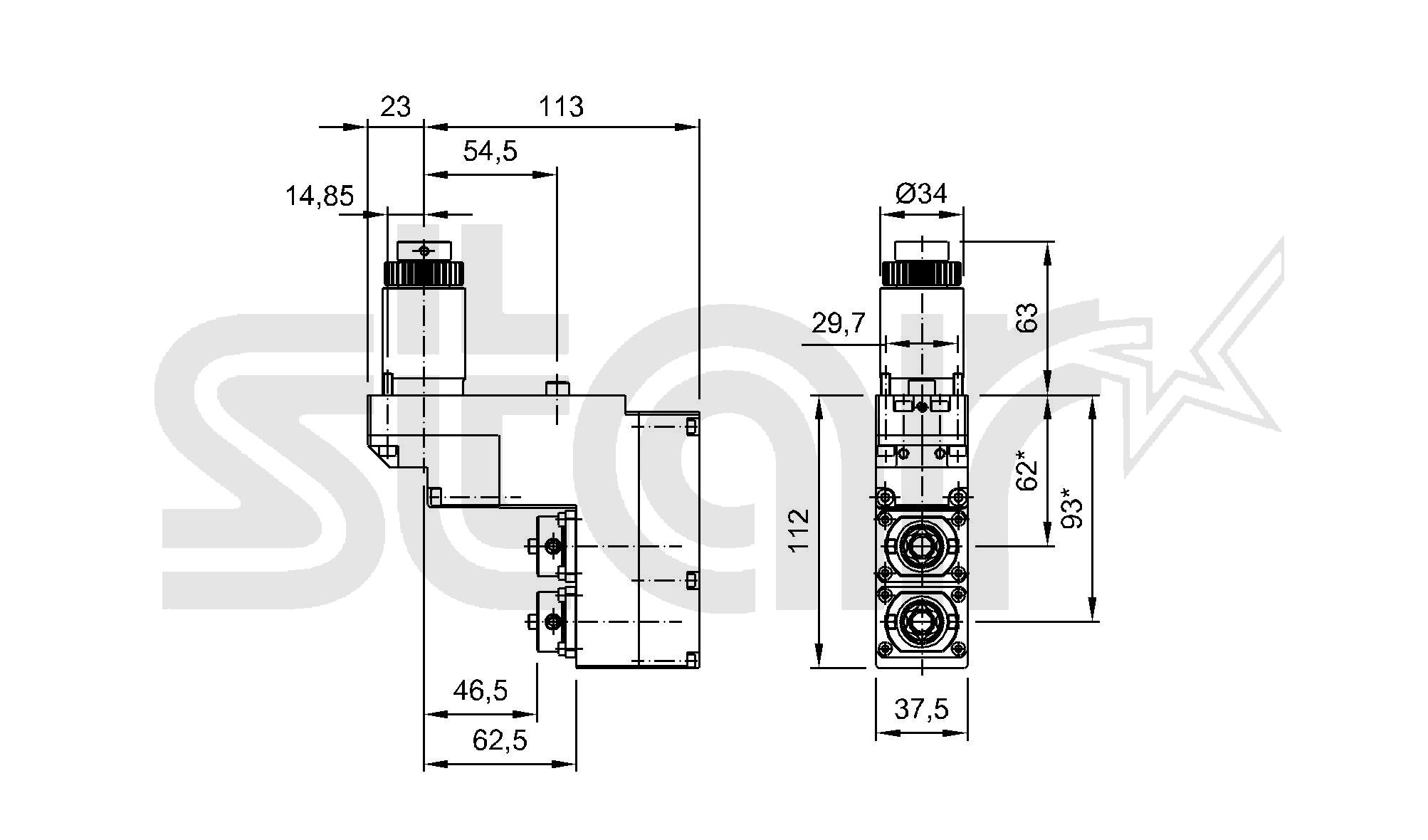

2D-View

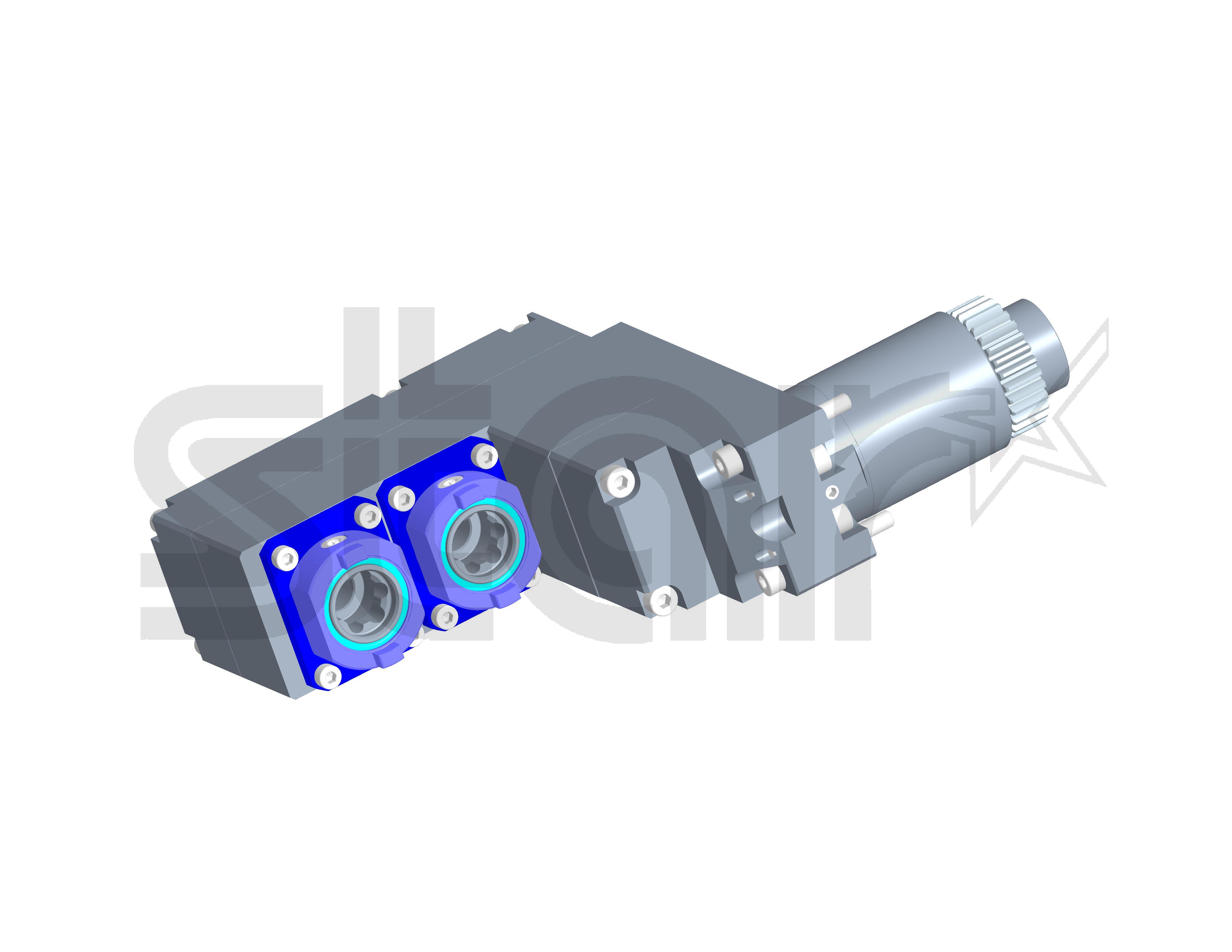

3D-View
2D-View
3D-View / QR-Code
