double front drilling-/milling unit ER11 for front- and backworking; 18000 1/min

Part Number 7.073.830
for 11 Machines
Ratio1:3.361
rpm at Inputmax. 5355 rpm
rpm at Outputmax. 18000 rpm
Torque at Outputmax. 4 Nm
Direction of Rotation
Scope of Deliverywithout wrench and collets * Actual size inscribed on the tool
AccessoriesCollets see Equipment for Toolholders Z2.1
Cover for internal coolant 1088334
Additional CAD Files:

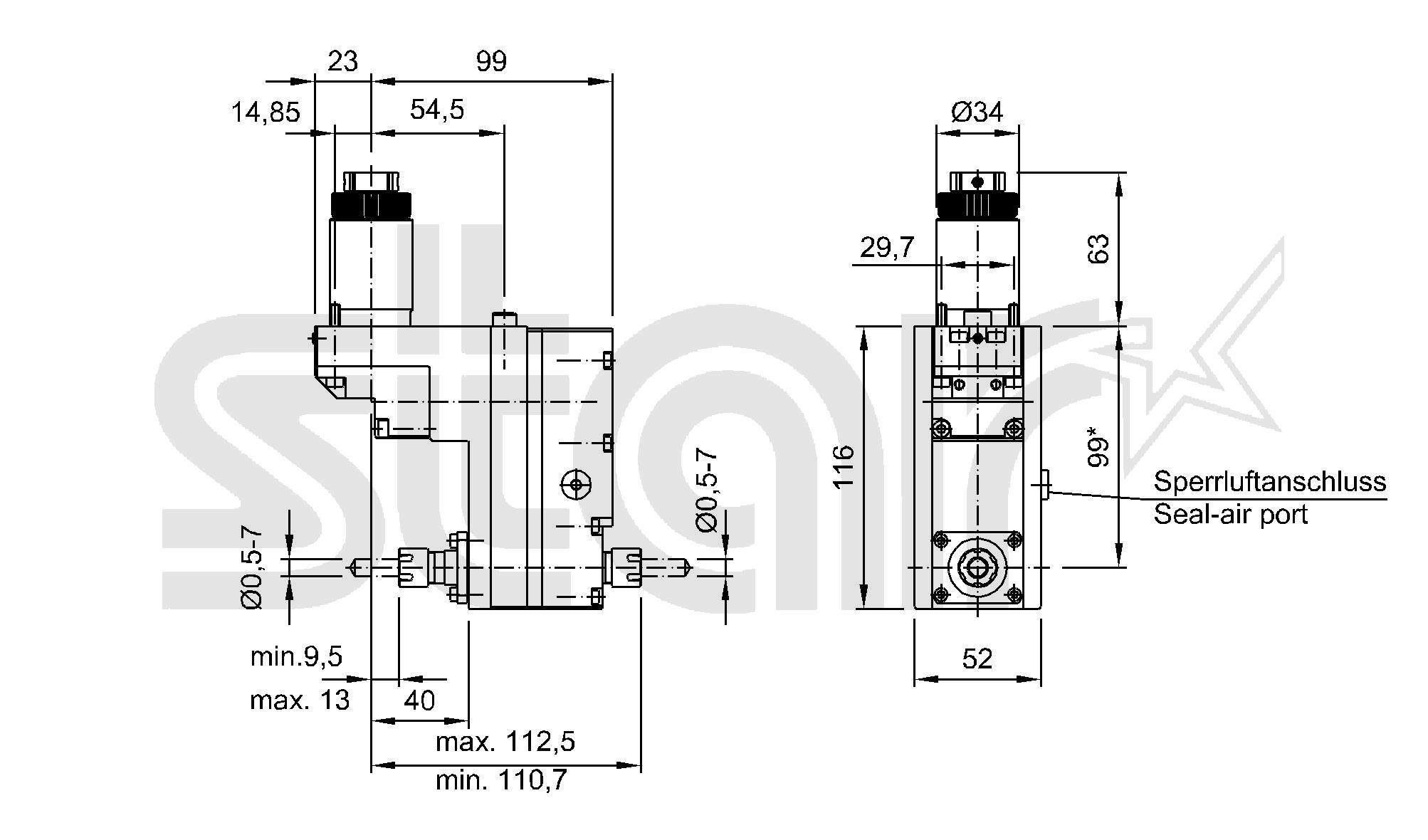

2D-View

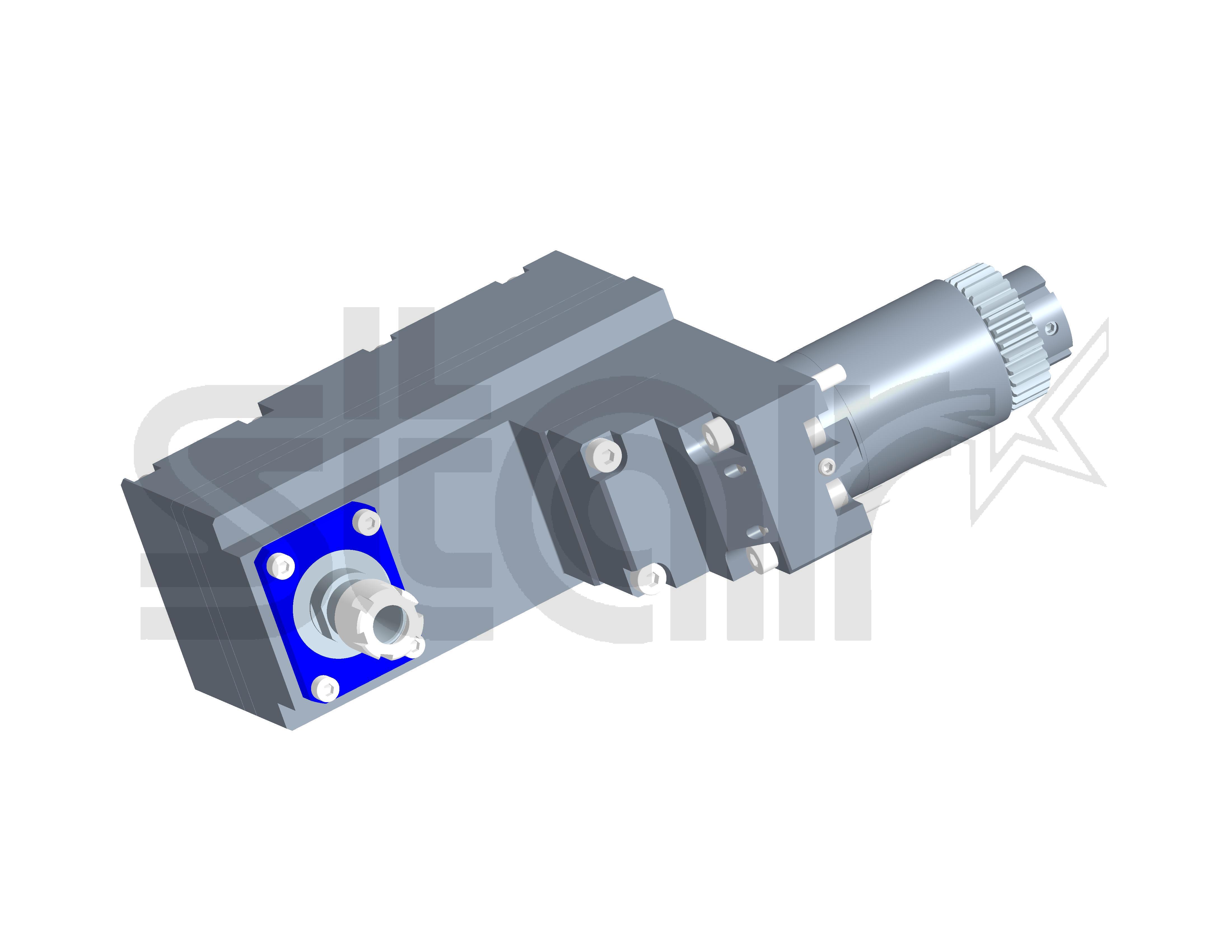

3D-View
