Detailed View
Cross drilling-/milling unit ER11 for backworking
| Part Number | 7.072.970 |
| for | 3 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 7500 rpm |
| rpm at Output | max. 7500 rpm |
| Torque at Output | max. 3 Nm |
| Direction of Rotation |  |
| Scope of Delivery | supplied with wrench, excluding collets * Actual size inscribed on the tool |
| Accessories | Collets see Equipment for Toolholders Z2.1 Cover for internal coolant 1088334 |
Additional CAD Files:

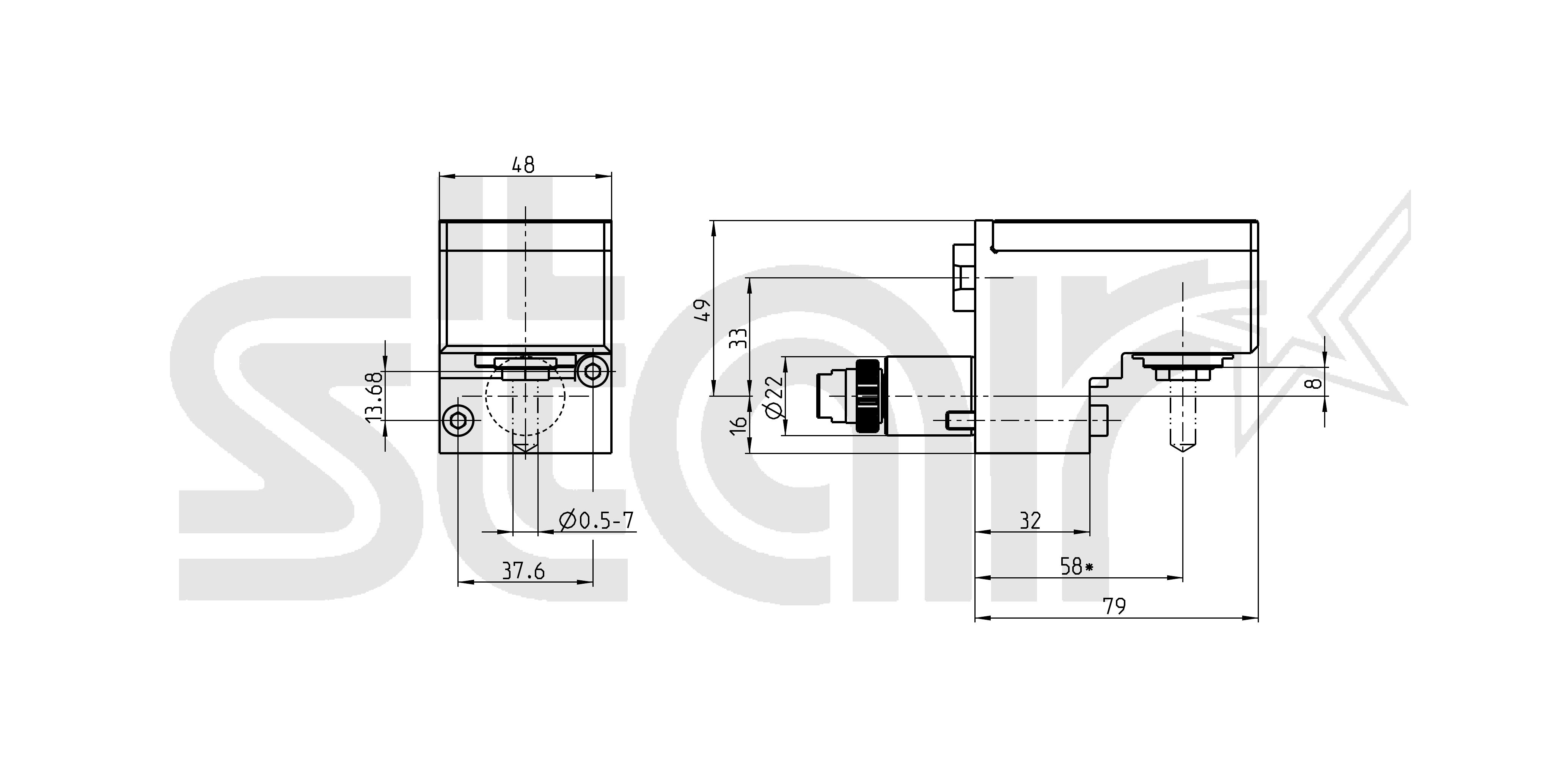

2D-View

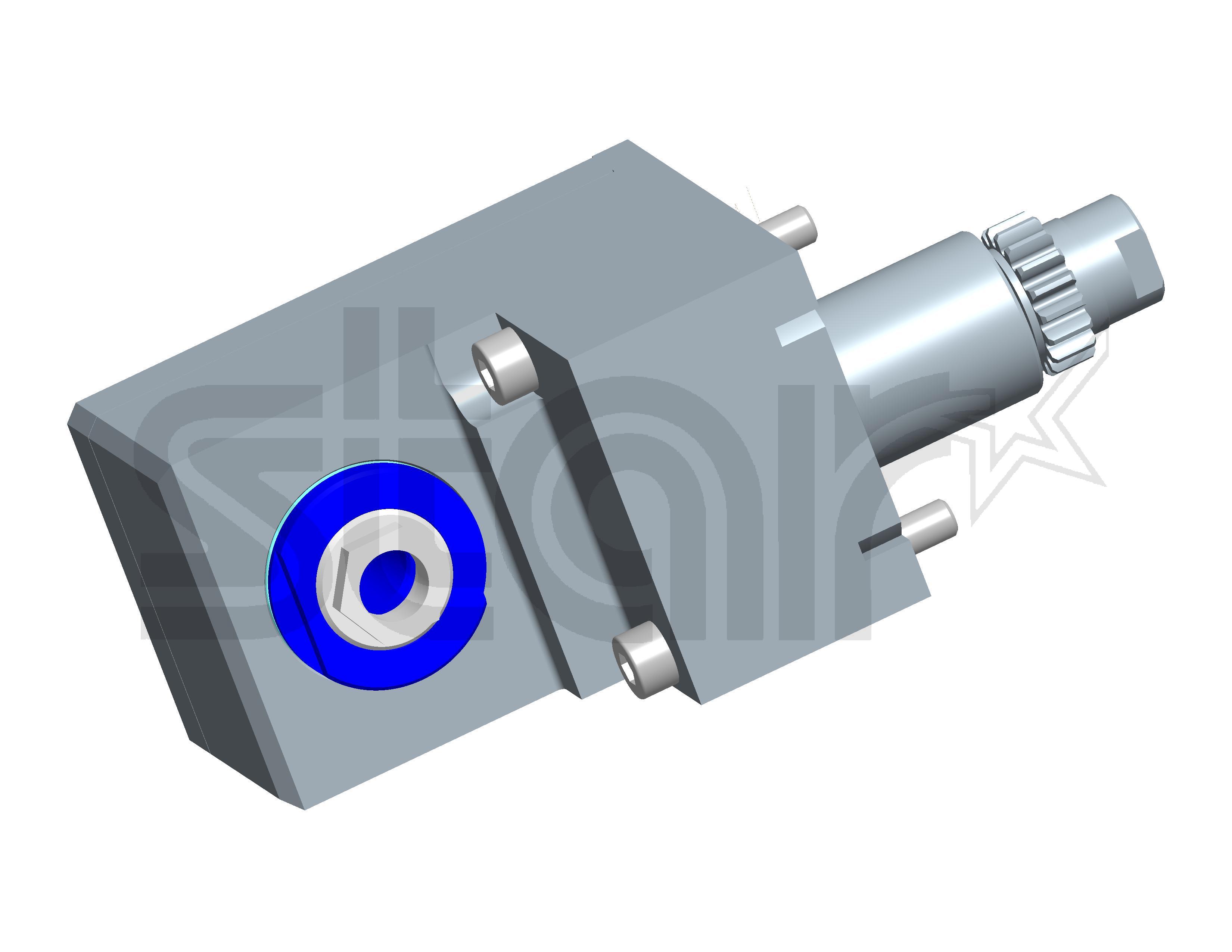

3D-View
2D-View
3D-View / QR-Code
Upload to Smart Phone
