Detailed View

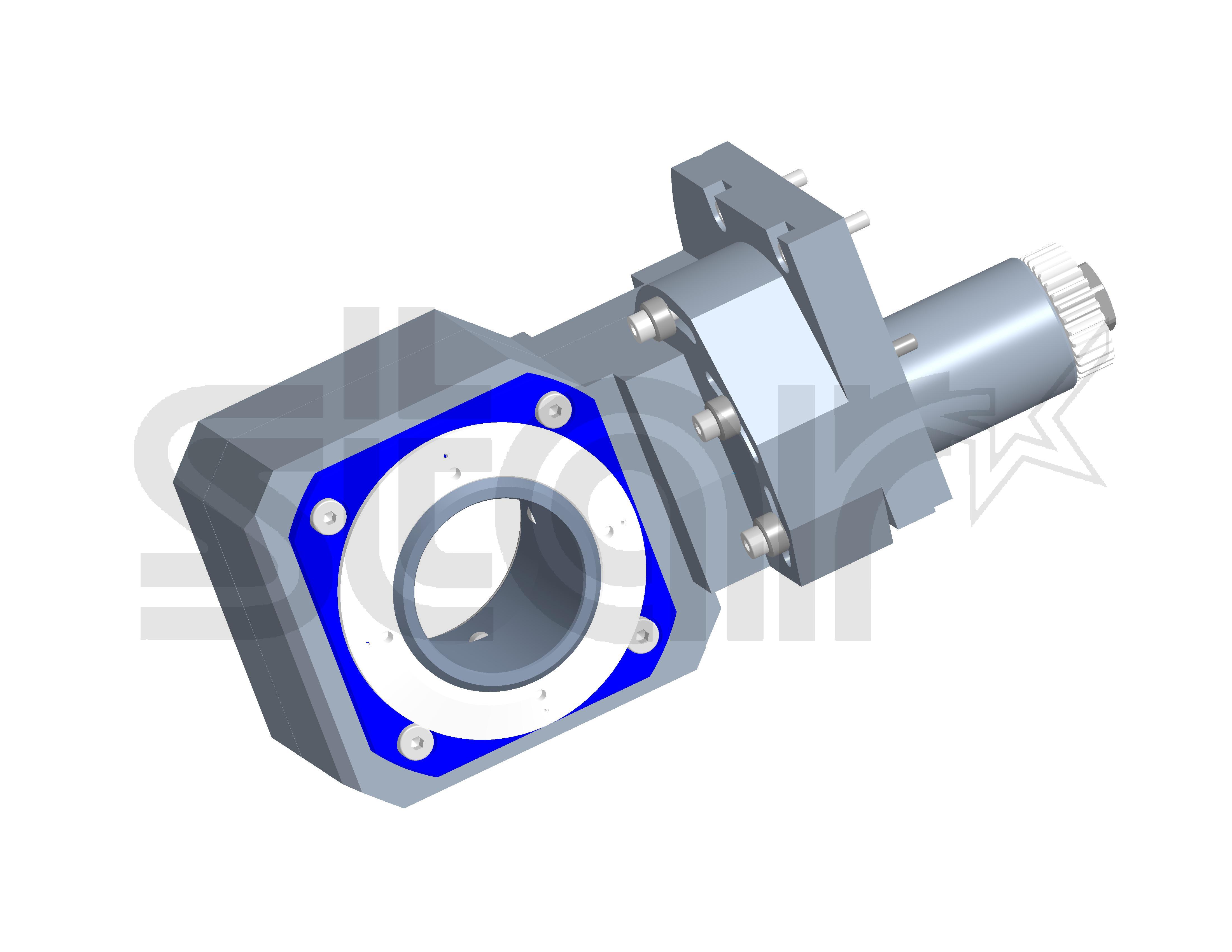

Thread whirling unit; adjustable (0°±20°)
| Part Number | 1129594 |
| for | 13 Machines |
| Ratio | 1:1 |
| rpm at Input | max. 8000 rpm |
| rpm at Output | max. 8000 rpm |
| Torque at Output | max. 13 Nm |
| Direction of Rotation |  |
| Scope of Delivery | * Actual size inscribed on the tool |
| Accessories | ESA-Nr. 19009 Whirling Tool DF=12 Fa. Schwanog 15° ESA-Nr. 31953 Whirling Tool DF=12 Fa. Schwanog 20° ESA-Nr. 19877 Whirling Tool DF=12 Fa. Horn Whirling Tool Fa. Gloor 501 0029 Adapter rings 7.079.410 H=6mm |
Additional CAD Files:

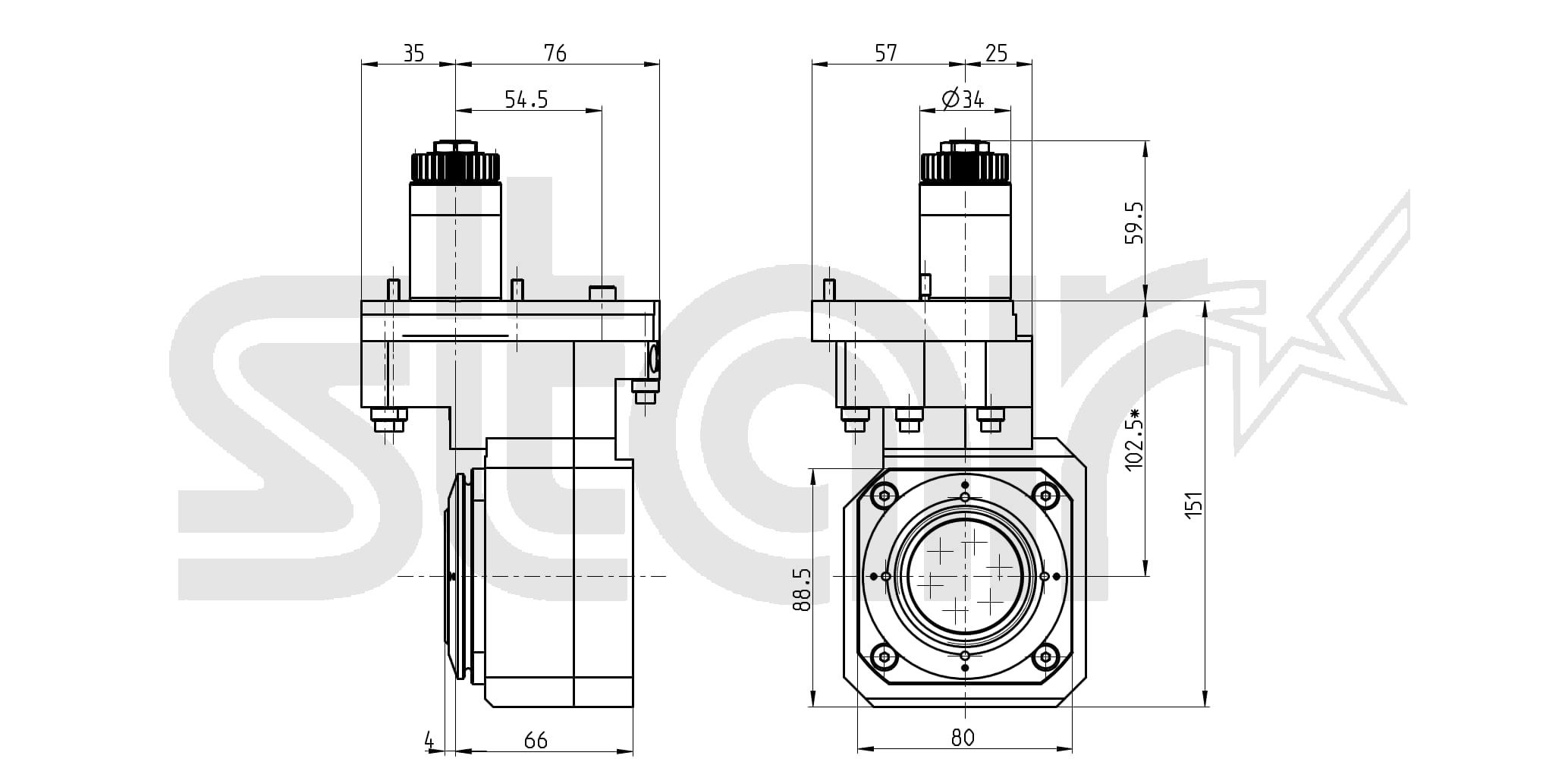

2D-View
3D-View
2D-View
3D-View / QR-Code
Upload to Smart Phone
